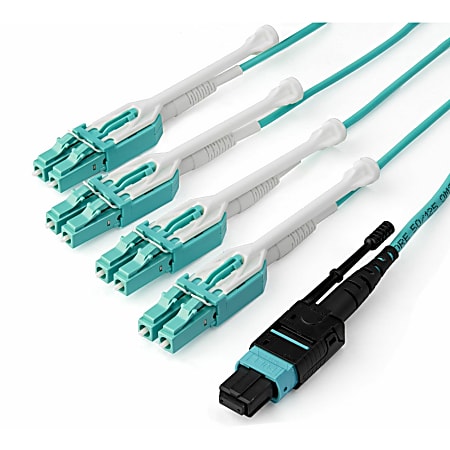

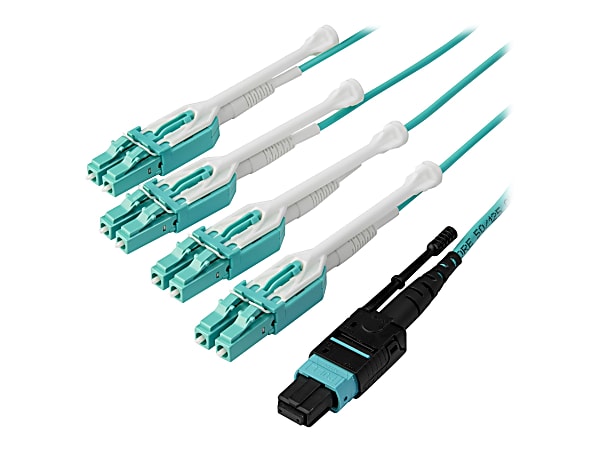

StarTech.com 1m 3ft MPO / MTP to LC Breakout Cable, Aqua

StarTech.com 1m 3ft MPO / MTP to LC Breakout Cable, Aqua
Share
1 / 1
$175.99/each

Description

    Fan out eight fibers from a 40Gbps MPO connection to four 10Gbps LC connections. This MPO/MTP to 8x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers. The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management. The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required. Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
    • SPECS: 1m (3.3ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to 4x Duplex LC Breakout; 850nm or 1300nm VCSEL; Modal Bandwidth: ?2000MHz?km at 850nm; Cable OD: 3.0mm (MTP), 2.0mm (LC); Insertion Loss: ?0.5dB (MTP), ?0.2dB (LC)
    • QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125?m fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
    • RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintains low insertion loss
    • COMPATIBILITY: OM3 MTP/MPO multimode cable supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connect from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers
    • OM3 FIBER CABLE: MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors; Ideal for high density connections between servers, switches, QSFP+ and SFP+ transceivers
    $175.99/each
