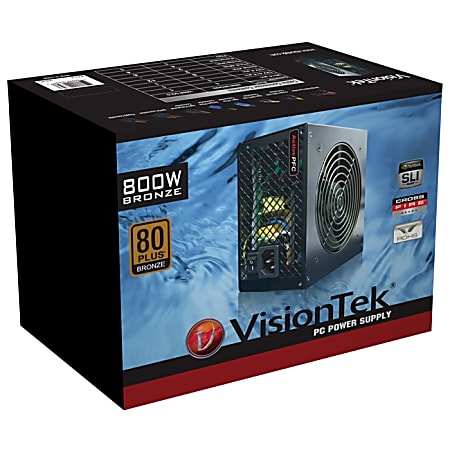

Visiontek 800W Power Supply
1 / 1
Description
The VisionTek 800W Modular Power Supply is 800W of whisper quiet, 80 PLUS Bronze efficient SLI and CrossFire-ready power for custom-built systems
Specifications
| Item # | 855967 |
| Manufacturer # | DY5503 |
| number of fans | 1 |
| Output Voltage | 3.3 V DC @ 26 A; 5 V DC @ 26 A; 12 V DC @ 32 A; -12 V DC @ 800 mA; 5 V DC @ 3 A |
| ATI CrossFire Supported | Yes |
| NVIDIA SLI Supported | Yes |
| Output Power | 800 W |
| depth | 8.3 in. |
| Product Name | 800W Power Supply |
| Number of +12V Rails | 2 |
| manufacturer | VisionTek Products, LLC |
| Input Voltage Range | 115 V AC to 230 V AC |
| Input Current | 12 A @ 110V; 6 A @ 220V |
| weight | 5.50 lb |
| Eco-conscious | Helps Save Energy |
| 80 PLUS Certification | 80 PLUS Bronze |
| brand name | VisionTek |
| protection type | Over Current; Over Voltage; Under Voltage; Underload; Short Circuit |
| Input Voltage | 110 V AC; 220 V AC |
| Input Voltage Type | AC |
| Output Current | +3.3V - 26 A ¦ +5V - 26 A ¦ +12V1 - 32 A ¦ +12V2 - 32 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A |
| eco-label/standard | 80 Plus Bronze; RoHS |
| form factor | Internal |
| Receptacles | 1 x 20+4pin ATX Motherboard; 1 x 4+4pin ATX12V Motherboard; 1 x 8-pin EPS12V Motherboard; 8 x Serial ATA; 2 x 6+2pin PCI-E; 2 x 6-pin PCI-E; 1 x 4-pin SP4 Floppy Drive; 4 x 4-pin LP4 Peripheral Device |
| Modular | Yes |
| warranty length | 3-year limited |
| model name | 900349 |
