Item # | 811657 |
Manufacturer # | TE1595 |
64-bit Processing | Yes |
Audio Channels | 7.1 |
BIOS Features | DMI support, M-Flash, MSI ClickBIOS 4 |
brand name | MSI |
Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
Chipset Manufacturer | Intel |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
controller type | Serial ATA/600; Serial ATA/300 |
depth | 6.8 in. |
DVI | Yes |
form factor | Micro ATX |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
Graphics Controller Memory | 1.72 GB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
Hardware Features | Audio jack detect technology, MSI Military Class IV, Military Class Essentials, OC Genie 4, MSI Fast Boot, MSI Super RAID, Clear CMOS Button |
Internal Interfaces | 2 x USB 2.0 - header; 1 x audio - header; 1 x serial - header |
manufacturer | MSI |
Max Processors Qty | 1 |
Max Size | 16 GB |
Maximum Memory | 16 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 1.60 GHz; 1.33 GHz; 1.07 GHz |
Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
Memory Technology | DDR3 SDRAM |

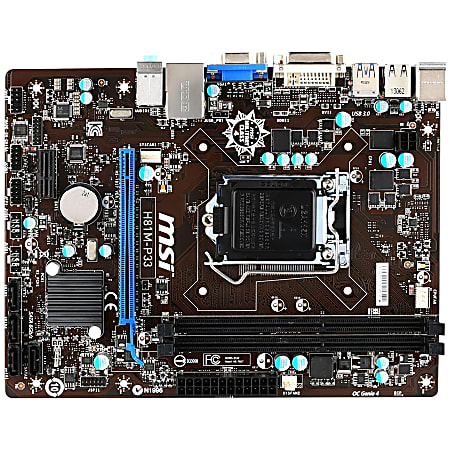

model | H81M-P33 |
Network Controller | Realtek RTL8111G |
Number of Memory Slots | 2 |
Number of PCI Express x1 Slots | 1 |
Number of PCI Express x16 Slots | 1 |
Number of SATA Interfaces | 4 |
Number of Total Expansion Slots | 2 |
Onboard Audio Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | CPU Dependent Video |
PCI Express Standard | PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 microphone; 2 onboard USB 2.0; 2 PS/2; 4 USB 2.0; 2 USB 3.0; 1 VGA 15-pin D-sub |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
Power Supply Supported | ATX12V |
Processor Socket | LGA1150 Socket |
Processor Supported | Core i5; Core i3; Pentium; Celeron |
PS/2 Port | Yes |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC887 |
Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices; SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices |
Total Number of Onboard USB Ports | 2 |
Total Number of PCI Express Slots | 2 |
Total Number of USB Ports | 6 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
Weight (Approximate) | 1.35 lb |
