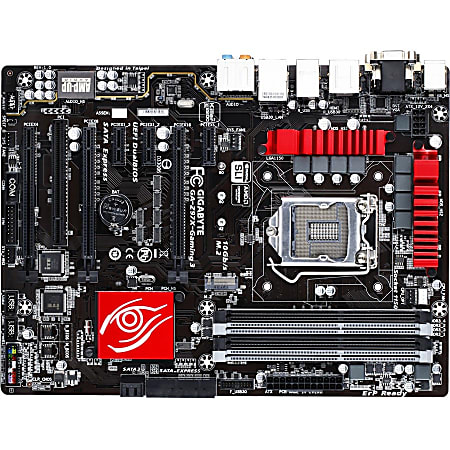

G1 Ultra Durable Z97X-Gaming 3 Desktop Motherboard - Intel Chipset - Socket H3 LGA-1150
1 / 1
$167.99/each
Description
Gigabyte G1 gaming motherboards are equipped with the Gigabyte exclusive AMP-UP Audio technology, which provides the industry's highest level of onboard audio features and technologies. With Gigabyte AMP-UP Audio, gamers and audiophiles are able to experience crisp, ultra realistic sound effects while gaming, and the richest possible sound experience when listening to their favorite music and movies.Gigabyte motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10 Gbps, considerably higher than SATA Revision 3 (6 Gbps), which won't bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.
Specifications
Item # | 528919 |
Manufacturer # | VR8591 |
BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS |
BIOS Type | AMI |
brand name | G1 |
Bus Clock | 1600 MHz, 1333 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2500 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 1800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.) |
Chipset Manufacturer | Intel |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
controller type | Serial ATA/600 |
depth | 8.9 in. |
DVI | Yes |
form factor | Atx |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
Graphics Memory Technology | DDR3 SDRAM |
Hardware Features | Q-Flash, Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI Technology Support, On/Off Charge, Intel Smart Response Technology, Fanless Design Heatsink, AMD CrossFireX technology support, AMD 3-way CrossFireX technology support, Intel Rapid Start Technology, Intel Smart Connect Technology, GIGABYTE OPT Fan Support, GIGABYTE AMP-UP Audio, GIGABYTE Smart Switch |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection |
HDMI | Yes |
Internal Interfaces | 4 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x audio - header; 1 x SPDIF out - header; 1 x serial - header |
manufacturer | GIGABYTE Technology, Inc |
Max Processors Qty | 1 |
Max Size | 32 GB |
Memory Form Factor | DIMM |
Memory Technology | DDR3 SDRAM |
model | Z97X-Gaming 3 |
Network Controller | Killer Gaming E2201 |
Number of M.2 Interfaces | 1 |
Number of Memory Slots | 4 |
Number of PCI Express x1 Slots | 3 |
Number of PCI Express x16 Slots | 1 |
Number of PCI Express x4 Slots | 1 |
Number of PCI Express x8 Slots | 1 |
Number of PCI Slots | 1 |
Number of SATA Interfaces | 6 |
Number of Total Expansion Slots | 7 |
Onboard Video | On-board Video Chipset |
ports | 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 4 onboard USB 2.0; 2 onboard USB 3.0; 4 USB 2.0; 4 USB 3.0; 1 VGA 15-pin D-sub |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Processor Socket | LGA1150 Socket |
Processor Supported | Core i7; Core i5; Core i3; Pentium |
Product Line | Ultra Durable |
RAID Features | Intel Smart Response Technology |
RAID Levels | 0; 1; 5; 1+0 |
RAID Supported | Yes |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC1150 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin SATA, 1 x M.2, 1 x SATA Express port - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 6 |
Total Number of PCI Express Slots | 6 |
Total Number of USB Ports | 8 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
Weight (Approximate) | 3.08 lb |
