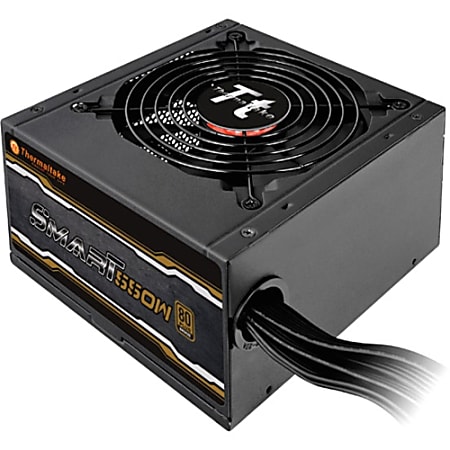

| Item # | 969475 |
| Manufacturer # | SP550P |
| 80 PLUS Certification | 80 PLUS Bronze |
| brand name | Thermaltake |
| color | Black |
| depth | 5.5 in. |
| dimensions | 3 2/5" x 5 9/10" x 5 1/2" |
| Efficiency | 88% |
| form factor | Internal |
| Input Voltage | 110 V AC; 220 V AC |
| Input Voltage Range | 100 V AC to 240 V AC |
| Input Voltage Type | AC |
| manufacturer | Thermaltake Technology Co., Ltd |
| model | SP-550AH2NCB |
| MTBF | 100,000 Hour |
| Number of +12V Rails | 1 |
| number of fans | 1 |
| Output Current | +3.3V - 24 A ¦ +5V - 15 A ¦ +12V - 42 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A |
| Output Power | 550 W |
| Output Voltage | 3.3 V DC @ 24 A; 5 V DC @ 15 A; 12 V DC @ 42 A; -12 V DC @ 500 mA; 5 V DC @ 3 A |
| Power Factor Correction (PFC) | Active |
| Product Line | Smart |
| protection type | Over Voltage; Under Voltage; Over Current; Over Power; Short Circuit |
| PSU Form Factor | ATX |
| Receptacles | 1 x 24-pin ATX Motherboard; 1 x 4+4pin ATX12V Motherboard; 2 x 6+2pin PCI-E; 6 x Serial ATA; 4 x 4-pin LP4 Peripheral Device; 1 x 4-pin SP4 Floppy Drive |
| Specification Compliance | ATX12V/EPS12V |
| warranty length | 3-year limited |
