Atdec Telehook TH-3270-UFM Full-motion TV Wall Mount Item # 139918
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability

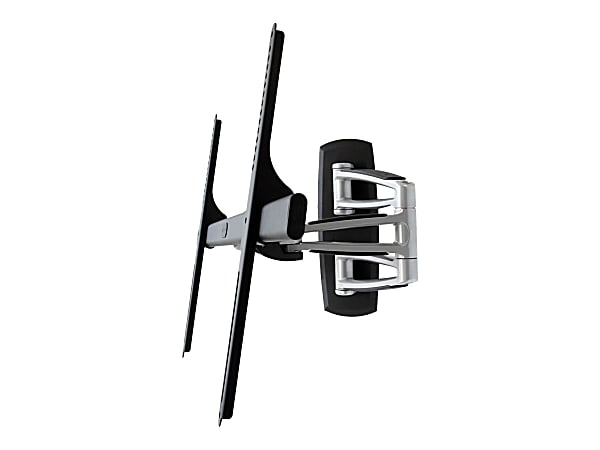

The TH-3270-UFM combines cutting edge, sleek design with the capacity to hold a display of 143lbs extended from the wall. Full motion capability comes from three pivot points that give you complete control over tilt, pan, swing, extension and pivot. Such superior control with minimal effort is thanks to Telehook's Smooth Glide technology and spring assisted tilting mechanisms. These innovative features support the full weight of your LED, LCD or Plasma display during adjustment, allowing one person to easily set the screen position for maximum viewing comfort. The die cast aluminum arm can extends 25" from the wall and the universal mounting hole pattern ensures this mount is compatible with a vast range of TVs. It comes pre- assembled, with a design that guarantees quick and easy installation. The display can be mounted in either portrait or landscape mode.
|Minimum Screen Size Supported||42"|
|VESA Mount Standard||100 x 100; 200 x 100; 200 x 200; 300 x 300; 400 x 300; 400 x 400; 600 x 400; 800 x 200; 800 x 400; 200 x 300|
|Additional Information||Spring supported tilt adjustment -5°/+20°; TV horizontal adjustment of -/+5°; Maximum reach from wall 635mm; Minimum distance from wall 174mm; Smooth Glide technology for effortless articulation or movement; Offers a full range of movement via three pivot points; Designed for simple installation; Quick release mechanism for fast TV attachment or removal; Advanced internal cable management; Theft resistant design|
|Maximum Adjustable Depth||25 in.|
|Max Mounting Pattern Size||31.7 x 19.7 in|
|Features||Articulating; Tilt; Pan; Quick Release Mechanism; Theft Resistant; Cable Management|
|Certifications & Standards||VESA:150-805mm; 140-500mm|
|Number of Displays Supported||1|
|package contents||Articulated Arm; Mounting Rail; 2 x Mounting Bracket; Drilling Guide; 3 x M10 Coach Screw; 3 x Concrete Anchor; 4mm/5mm/6mm Allen Key; 4 x M5 Washer; 4 x M6 Washer; 4 x M8 Washer; Mount Head Screw; 3 x M10 Washer; 4 x M4/5 Spacer Bush; 4 x M6/8 Spacer Bush; Nylon Washer; 4 x M8x30mm; 4 x M8x50mm; 4 x M6x30mm; 4 x M6x45mm; 4 xM5x30mm; 4 x M5x45mm|
|Device Supported||Flat Panel Display|
|Product Name||3270 Wall/Full Motion|
|manufacturer||Atdec Pty Ltd|
|maximum screen size supported||70"|
|Compatibility||LED; LCD; Plasma|
|Maximum Load Capacity||143.30 lb|
|VESA Mount Compatible||Yes|
|warranty length||10-year limited|
